MAX709LCSA+ - Analog Devices

Description: MAX709LCSA+, Processor Supervisor 3 V, 3.3 V, 5 V Active Low, Push-Pull, 8-Pin SOIC

Download MAX709LCSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

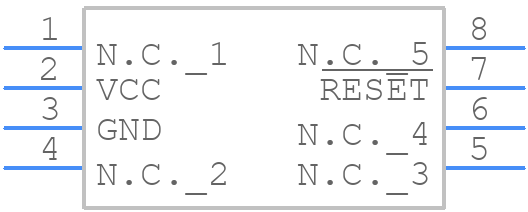

MAX709LCSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX709LCSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036_1
click to zoom
3D Models
MAX709LCSA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036_1
click to zoom

MAX709LCSA+ Details

  • Manufacturer Part Number:

    MAX709LCSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX709LCSA+ Frequently Asked Questions (FAQs)

  • The MAX709LCSA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and coupling. Additionally, it is recommended to use a bypass capacitor between the VCC and GND pins to filter out high-frequency noise.
  • The reset pin (RST) is an active-low input that resets the device when pulled low. It is recommended to tie the RST pin to VCC through a pull-up resistor (e.g., 1kΩ) to ensure the device is not inadvertently reset. If a reset function is required, a logic signal can be connected to the RST pin, but ensure it is properly debounced to prevent multiple resets.
  • The MAX709LCSA+ is rated for operation from -40°C to +85°C. However, it is recommended to derate the device's performance at higher temperatures to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • Yes, the MAX709LCSA+ is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5μA (typical). However, it is essential to consider the device's power consumption and battery life requirements to ensure the device meets the system's power budget.
  • To ensure EMC with the MAX709LCSA+, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components as necessary. Additionally, ensure the device is properly decoupled and bypassed to minimize radiated emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX709LCSA+ Overview

Use the download button to access the MAX709LCSA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX70, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
