MAX7301AAI+ - Analog Devices

Description: Maxim MAX7301AAI+, Input Output Controller 20-USB, 28-Pin SSOP

Download MAX7301AAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

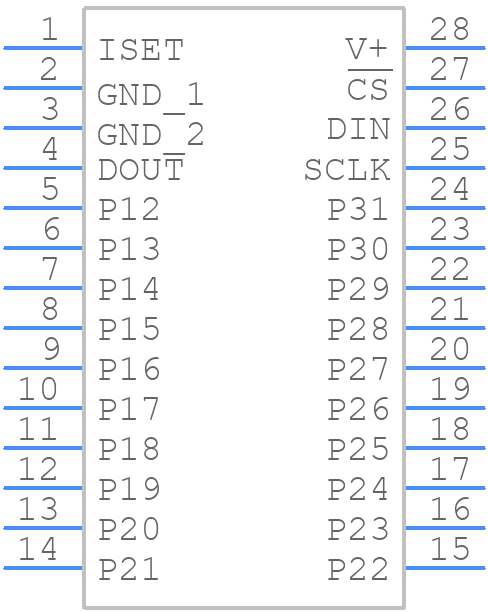

MAX7301AAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7301AAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-28
click to zoom
3D Models
MAX7301AAI+ - Analog Devices - 3D model - Small Outline Packages - SSOP-28
click to zoom

MAX7301AAI+ Details

  • Manufacturer Part Number:

    MAX7301AAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    26 MHz

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    20

  • Number of Ports:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    0.27 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7301AAI+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7301AAI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX7301AAI+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying VCC before applying VIL, and waiting for the internal reset to complete before accessing the device. Additionally, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
  • The maximum frequency of operation for the MAX7301AAI+ is 400 kHz, but it can be operated at higher frequencies with reduced performance. It's recommended to consult the datasheet and application notes for more information on frequency of operation and performance trade-offs.
  • To troubleshoot issues with the MAX7301AAI+, start by verifying the power-up sequence and ensuring that the input voltage is within the recommended range. Check the device's output using an oscilloscope or logic analyzer to identify any issues. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
  • Yes, the MAX7301AAI+ can be used in a hot-swappable application, but it's essential to ensure that the device is properly powered down before removal and that the input voltage is removed before the device is disconnected. Consult the datasheet and application notes for more information on hot-swapping and power sequencing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7301AAI+ Overview

Use the download button to access the MAX7301AAI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Other Interface ICs
