MAX7312ATG+ - Analog Devices

Description: Maxim MAX7312ATG+, 16-channel 16bit I/O Expander 400kHz, Serial-2 Wire, 24-Pin TQFN

Download MAX7312ATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

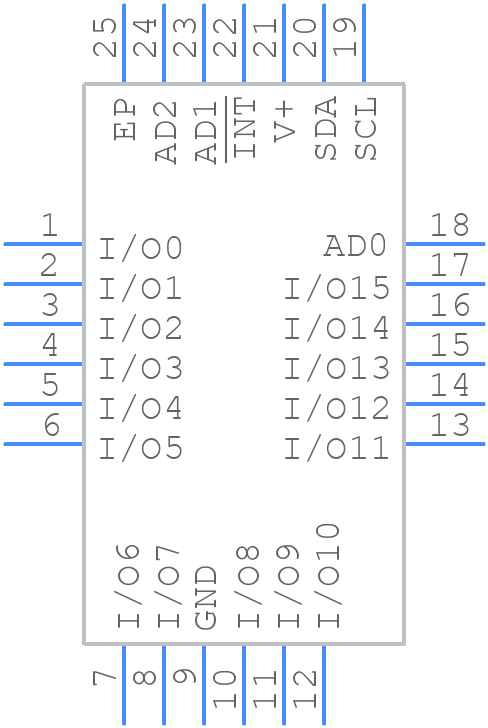

MAX7312ATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7312ATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX7312ATG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX7312ATG+ Details

  • Manufacturer Part Number:

    MAX7312ATG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM PITCH, MO-220, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7312ATG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7312ATG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the power supply decoupling capacitors close to the device.
  • To ensure the MAX7312ATG+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying the power supply voltage to the device before applying the clock signal. Also, ensure that the device is properly reset after power-up by asserting the RESET pin low for at least 100ns.
  • The maximum clock frequency that can be used with the MAX7312ATG+ is 400kHz. However, it's recommended to use a clock frequency of 100kHz or less to ensure reliable operation and to minimize power consumption.
  • To troubleshoot issues with the MAX7312ATG+, start by checking the power supply voltage and clock signal to ensure they are within the specified ranges. Then, use a logic analyzer or oscilloscope to verify the device's output signals and ensure they are correct. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAX7312ATG+ can be used in a noisy environment, but it's recommended to take precautions to minimize the effects of noise. This can include using a shielded enclosure, adding noise filters to the power supply and clock signals, and using a ground plane to reduce electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7312ATG+ Overview

Use the download button to access the MAX7312ATG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Parallel IO Ports

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
