MAX7313ATG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7313ATG+ - I/O EXPANDER, I2C, 16PORT, TQFN-24

Download MAX7313ATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

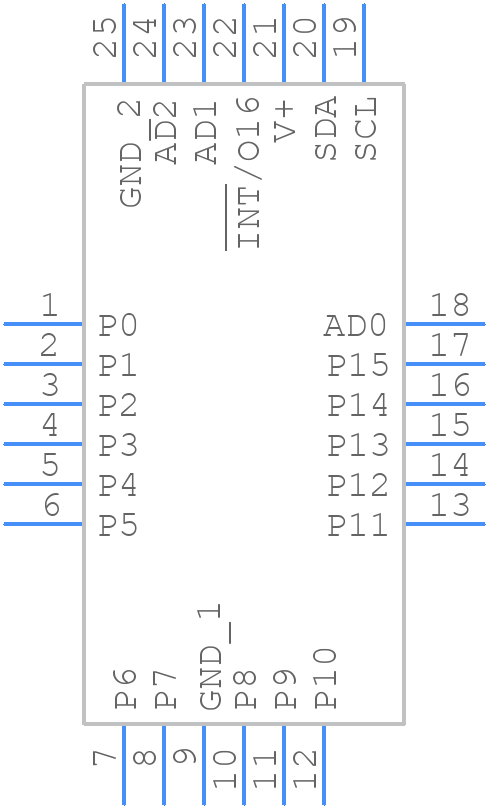

MAX7313ATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7313ATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX7313ATG+
click to zoom
3D Models
MAX7313ATG+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX7313ATG+
click to zoom

MAX7313ATG+ Details

  • Manufacturer Part Number:

    MAX7313ATG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM PITCH, MO-220WGGD-2, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.122 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7313ATG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7313ATG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX7313ATG+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying VCC before applying VLOGIC. Also, ensure that the device is properly reset by asserting the RESET pin low for at least 10ns.
  • The maximum capacitance value that can be used with the MAX7313ATG+ depends on the specific application and the desired performance. However, as a general rule, it's recommended to use capacitors with a value between 10nF and 100nF. Using capacitors with higher values may affect the device's stability and performance.
  • To troubleshoot issues with the MAX7313ATG+, start by verifying the power supply and clock signals, and ensure that the device is properly reset. Then, use a logic analyzer or oscilloscope to monitor the device's output signals and verify that they are correct. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • The MAX7313ATG+ is designed to operate with 3.3V logic levels, but it can also be used with 5V logic levels with some limitations. However, using 5V logic levels may affect the device's performance and reliability, and may require additional circuitry to ensure compatibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7313ATG+ Overview

Use the download button to access the MAX7313ATG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Parallel IO Ports

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
