MAX7320AEE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7320AEE+ - I/O EXPANDER, I2C, 8PORT, 400KHZ, QSOP16

Download MAX7320AEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

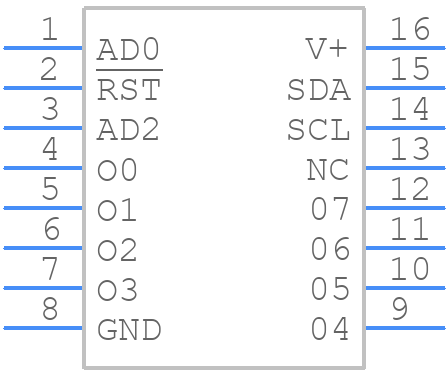

Symbol
MAX7320AEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7320AEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_O
click to zoom
3D Models
MAX7320AEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_O
click to zoom

MAX7320AEE+ Details

  • Manufacturer Part Number:

    MAX7320AEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of I/O Lines:

    8

  • Number of Ports:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.055 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7320AEE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7320AEE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • The MAX7320AEE+ requires a power-up sequence to ensure proper initialization. The VCC pin should be powered up first, followed by the VLOGIC pin. The device should be powered up with a slow ramp-up time (typically 1ms to 10ms) to prevent latch-up. Refer to the datasheet for more details.
  • The MAX7320AEE+ can source up to 20mA and sink up to 64mA per I/O pin. However, the total current sourced or sunk by all I/O pins should not exceed 200mA. Refer to the datasheet for more details.
  • The MAX7320AEE+ has built-in hot-swap capability, but it's essential to follow proper design guidelines to prevent damage or latch-up. Use a series resistor (typically 1kΩ to 10kΩ) on the I/O lines, and ensure that the peripheral is powered down before removal. Refer to the application note AN-1149 for more details.
  • The MAX7320AEE+ can be programmed using a serial interface (I2C or SPI) or through the use of external resistors. The recommended method is to use a serial interface, as it provides more flexibility and allows for dynamic configuration. Refer to the datasheet for more details.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7320AEE+ Overview

Use the download button to access the MAX7320AEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Parallel IO Ports

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
