MAX7358EUG+T - Analog Devices

Description: 1-to-8 I?C Bus Switches/Multiplexers with Bus Lock-up Detection, Isolation, and Notification

Download MAX7358EUG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

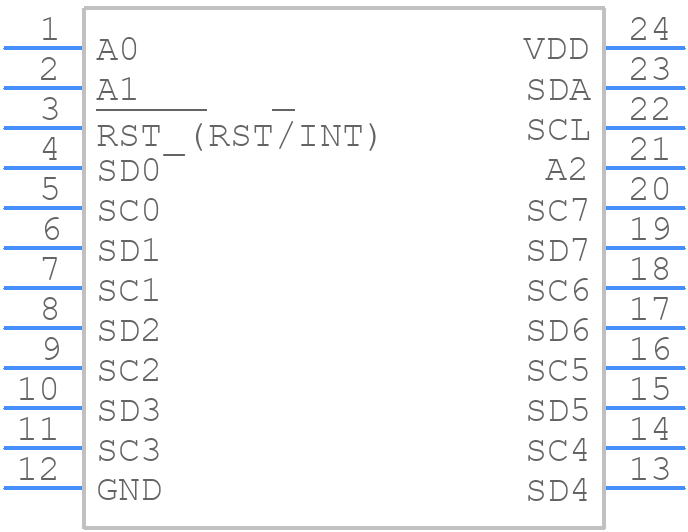

MAX7358EUG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7358EUG+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U24+1
click to zoom
3D Models
MAX7358EUG+T - Analog Devices - 3D model - Small Outline Packages - U24+1
click to zoom

MAX7358EUG+T Details

  • Manufacturer Part Number:

    MAX7358EUG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-09-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On-state Resistance-Max (Ron):

    55 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX7358EUG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX7358EUG+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components for the MAX7358EUG+T depends on the specific application requirements, such as the input voltage, output voltage, and output current. Analog Devices provides a component selection guide in the datasheet, and online tools such as the MAX7358EUG+T Component Selector can also be used to help choose the correct components.
  • The MAX7358EUG+T has an operating temperature range of -40°C to +125°C. At higher temperatures, the device's performance may be affected, such as a decrease in efficiency and an increase in quiescent current. It's recommended to follow the thermal management guidelines in the datasheet to ensure reliable operation.
  • To troubleshoot common issues with the MAX7358EUG+T, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations on the output voltage. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MAX7358EUG+T is compatible with lead-free soldering processes. The device is RoHS-compliant and can be soldered using lead-free soldering techniques. However, it's recommended to follow the recommended soldering profile and guidelines to ensure reliable assembly.
