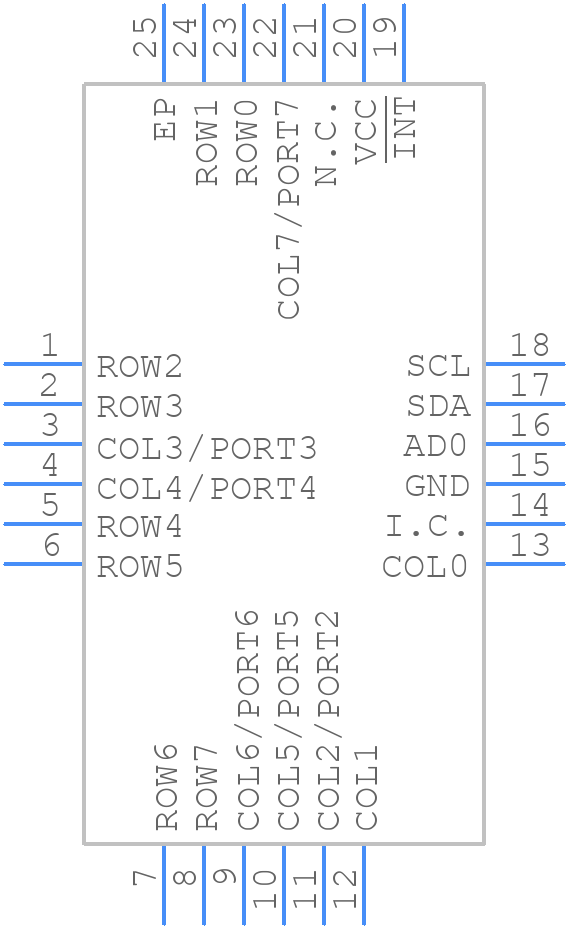

Symbol
MAX7359ETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7359ETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX7359ETG+
click to zoom
3D Models
MAX7359ETG+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX7359ETG+
click to zoom

MAX7359ETG+ Details

  • Manufacturer Part Number:

    MAX7359ETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Package Description:

    3.50 X 3.50 MM, ROHS COMPLIANT, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2007-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.13SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT
