MAX7370ETG+T - Analog Devices

Description: Display Drivers & Controllers 8 x 8 Key-Switch Controller & LED Driver/GPIOs w I2C Interface & IEC Lvl 4 ESD Protection

Download MAX7370ETG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

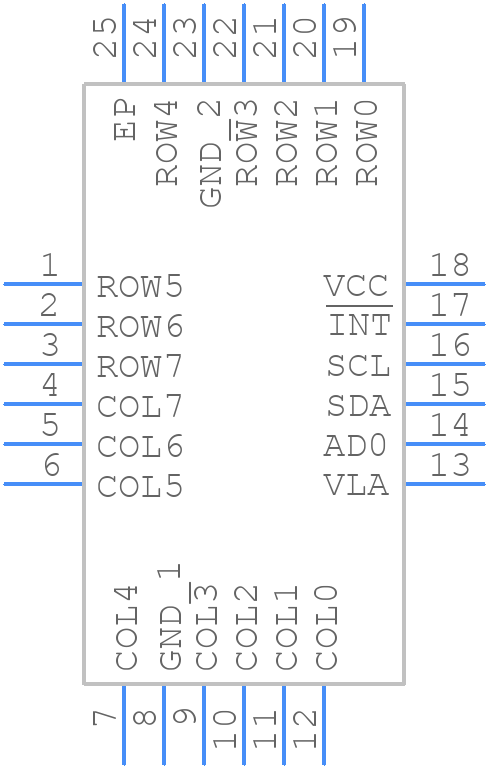

MAX7370ETG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7370ETG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 TQFN-EP*-*
click to zoom
3D Models
MAX7370ETG+T - Analog Devices - 3D model - Quad Flat No-Lead - 24 TQFN-EP*-*
click to zoom

MAX7370ETG+T Details

  • Manufacturer Part Number:

    MAX7370ETG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Package Description:

    3.50 X 3.50 MM, ROHS COMPLIANT, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-07-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.13SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.62 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX7370ETG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX7370ETG+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The output capacitor selection for the MAX7370ETG+T depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. The capacitor's ESR (Equivalent Series Resistance) should be low, typically < 10mΩ. It's also important to consider the capacitor's temperature rating and ripple current rating.
  • The MAX7370ETG+T has an absolute maximum input voltage rating of 6V. However, the recommended input voltage range is 2.7V to 5.5V. Operating the device above the recommended input voltage range may affect its performance, reliability, and lifespan.
  • To ensure stability and prevent oscillation, it's essential to follow the layout guidelines, use a suitable output capacitor, and add a compensation capacitor (C_COMP) between the COMP pin and GND. The value of C_COMP depends on the output voltage and output current. A general starting point is 10nF to 22nF. Additionally, ensure that the input voltage is within the recommended range, and the device is operated within its specified temperature range.
  • The typical startup time for the MAX7370ETG+T is around 1ms to 2ms, depending on the input voltage, output voltage, and output current. However, this time can vary depending on the specific application and PCB layout. It's essential to ensure that the input voltage is stable and within the recommended range during startup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7370ETG+T Overview

Use the download button to access the MAX7370ETG+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
