MAX7414EUA+T - Analog Devices

Description: Active Filters 5th-Order, Lowpass, Switched-Capacitor Filters

Download MAX7414EUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

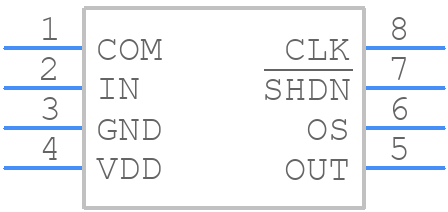

MAX7414EUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7414EUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX7414EUA+T - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX7414EUA+T Details

  • Manufacturer Part Number:

    MAX7414EUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-09-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    15 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Order:

    5TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BUTTERWORTH

  • Width:

    3 mm

MAX7414EUA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX7414EUA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The output filter components (R1, C1, R2, and C2) should be chosen based on the desired cutoff frequency and the output impedance of the device. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
  • The maximum power dissipation of the MAX7414EUA+T is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the device away from other heat sources. Also, ensure that the device is operated within the recommended operating temperature range.
  • Yes, the MAX7414EUA+T can be used in a switching power supply application, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and ripple from affecting its performance. Additionally, the device's output should be filtered to remove high-frequency components.
  • To troubleshoot issues with the MAX7414EUA+T, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Then, check the input and output waveforms using an oscilloscope to identify any signs of oscillation or instability. Finally, verify that the device is properly decoupled and bypassed, and that the output filter components are correctly chosen.
