MAX7418EUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7418EUA+ - Switched Capacitor Filter, Elliptic, Lowpass, 5th, 1, 4.5 V, 5.5 V, µMAX

Download MAX7418EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

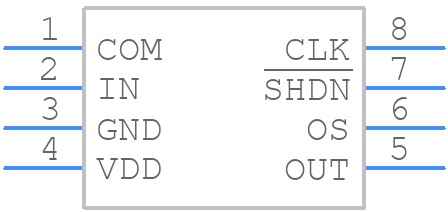

MAX7418EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7418EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX7418EUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX7418EUA+ Details

  • Manufacturer Part Number:

    MAX7418EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    30 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Order:

    5TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    ELLIPTIC

  • Width:

    3 mm

MAX7418EUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX7418EUA+ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the feedback resistors close to the device.
  • The choice of output filter components depends on the specific requirements of your application, such as the desired output voltage ripple, load current, and stability. A good starting point is to use the recommended values in the datasheet, and then adjust them based on simulation and experimentation.
  • The MAX7418EUA+ has an absolute maximum input voltage rating of 18V, but it's recommended to operate it within the recommended input voltage range of 4.5V to 15V to ensure reliable operation and prevent damage.
  • The MAX7418EUA+ is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve in the datasheet.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines, and to verify the device's stability through simulation and experimentation. Additionally, it's recommended to add a small capacitor (e.g., 10nF) between the output and ground to improve stability.
