MAX7420EUA+ - Analog Devices

Description: 5th-Order, Lowpass, Switched-Capacitor Filters

Download MAX7420EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

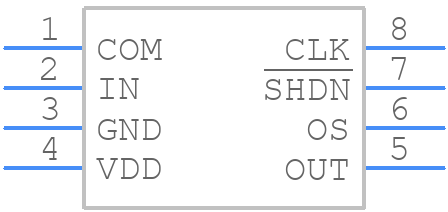

Symbol
MAX7420EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7420EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 µMAX height 1.1
click to zoom
3D Models
MAX7420EUA+ - Analog Devices - 3D model - Small Outline Packages - 8 µMAX height 1.1
click to zoom

MAX7420EUA+ Details

  • Manufacturer Part Number:

    MAX7420EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    30 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Order:

    5TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BUTTERWORTH

  • Width:

    3 mm

MAX7420EUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX7420EUA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the analog signal sources to minimize noise pickup.
  • To ensure the MAX7420EUA+ is properly powered and decoupled, use a high-quality power supply with low noise and ripple. Decouple the device with 0.1uF and 10uF capacitors in parallel, placed close to the device. The capacitors should be connected between the power pin and the ground pin. Additionally, use a ferrite bead or a power inductor in series with the power supply to filter out high-frequency noise.
  • The maximum operating temperature range for the MAX7420EUA+ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C. It's recommended to operate the device within the -40°C to +85°C range for optimal performance and reliability.
  • To troubleshoot common issues with the MAX7420EUA+, start by checking the power supply and decoupling. Ensure the power supply is stable and the decoupling capacitors are properly connected. Check for noise and interference on the analog input signals. Verify the device is properly configured and the output is not overloaded. Use an oscilloscope to monitor the output and input signals to identify any anomalies.
  • The MAX7420EUA+ is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, it's recommended to use industrial-grade or automotive-grade devices that meet specific reliability and safety standards. Consult with Analog Devices Inc or a qualified engineer to determine the suitability of the MAX7420EUA+ for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7420EUA+ Overview

Use the download button to access the MAX7420EUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX74, or try a keyword search, such as Active Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
