MAX7423CUA+ - Analog Devices

Description: 5th-Order, Lowpass, Switched-Capacitor Filters

Download MAX7423CUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

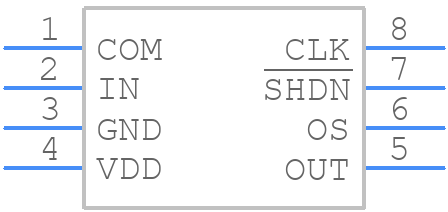

Symbol
MAX7423CUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7423CUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 µMAX height 1.1
click to zoom
3D Models
MAX7423CUA+ - Analog Devices - 3D model - Small Outline Packages - 8 µMAX height 1.1
click to zoom

MAX7423CUA+ Details

  • Manufacturer Part Number:

    MAX7423CUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    30 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Order:

    5TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3.8 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BESSEL

  • Width:

    3 mm

MAX7423CUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX7423CUA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the audio input to minimize noise pickup.
  • To optimize the performance of the MAX7423CUA+ in a noisy environment, use a shielded enclosure, keep the device away from sources of electromagnetic interference (EMI), and use a low-pass filter at the input to reduce high-frequency noise. Additionally, use a high-quality power supply with a low noise floor and decouple the power supply lines with capacitors.
  • The maximum operating temperature range for the MAX7423CUA+ is -40°C to +85°C. However, the device can be operated at temperatures above 85°C for short periods of time, but the reliability and performance may be affected.
  • To troubleshoot issues with the MAX7423CUA+, start by checking the power supply voltage and ensuring it is within the recommended range. Then, check the input and output signals using an oscilloscope to identify any anomalies. Check the PCB layout and placement to ensure they meet the recommended guidelines. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX7423CUA+ can be used in a battery-powered device. The device has a low power consumption of 2.5mA and can operate from a single 2.7V to 5.5V power supply, making it suitable for battery-powered applications. However, the power supply voltage should be regulated to ensure it remains within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7423CUA+ Overview

Use the download button to access the MAX7423CUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX74, or try a keyword search, such as Active Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
