MAX7424EUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7424EUA+ - Switched Capacitor Filter, Butterworth, Lowpass, 5th, 1, 2.7 V, 3.6 V, µMAX

Download MAX7424EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

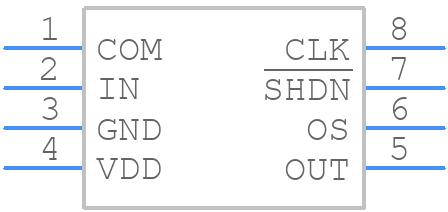

MAX7424EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7424EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1(h=1.1)
click to zoom
3D Models
MAX7424EUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1(h=1.1)
click to zoom

MAX7424EUA+ Details

  • Manufacturer Part Number:

    MAX7424EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    30 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Order:

    5TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3.8 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BUTTERWORTH

  • Width:

    3 mm

MAX7424EUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX7424EUA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the audio input to minimize noise pickup.
  • To optimize the performance of the MAX7424EUA+ in a noisy environment, use a shielded enclosure, keep the device away from sources of electromagnetic interference (EMI), and use a low-pass filter on the input signals. Additionally, use a common-mode choke on the power supply lines and decouple the power supply with a 10uF capacitor.
  • The maximum operating temperature range for the MAX7424EUA+ is -40°C to +85°C. However, the device can be operated at temperatures above 85°C with derated performance. It is recommended to consult the datasheet for more information on temperature derating.
  • Yes, the MAX7424EUA+ can be used in a battery-powered device. The device has a low quiescent current of 1.5mA, making it suitable for battery-powered applications. However, it is recommended to use a low-dropout regulator (LDO) to regulate the power supply to the device.
  • To troubleshoot issues with the MAX7424EUA+, start by checking the power supply voltage and ensuring that it is within the recommended range. Check the input signals for noise and distortion, and verify that the device is properly connected to the audio input. Use an oscilloscope to measure the output signals and verify that they are within the expected range. Consult the datasheet and application notes for more troubleshooting tips.
