MAX7426EUA+ - Analog Devices

Description: Maxim MAX7426EUA+, Active Filter, Low Pass Filter, 5th Order Switched Capacitor 9kHz, 8-Pin μMAX

Download MAX7426EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

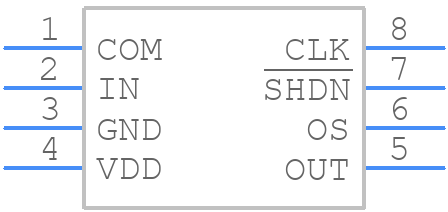

MAX7426EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7426EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX7426EUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX7426EUA+ Details

  • Manufacturer Part Number:

    MAX7426EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    9 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Order:

    5TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    ELLIPTIC

  • Width:

    3 mm

MAX7426EUA+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX7426EUA+ is to use a 4-layer board with a solid ground plane on the bottom layer, and to keep the analog and digital signals separate. Additionally, it is recommended to use a 10nF decoupling capacitor between VCC and GND, and to place the capacitor as close as possible to the device.
  • To ensure the MAX7426EUA+ is properly powered, make sure to provide a clean and stable power supply voltage between 2.7V and 5.5V, and to decouple the power pins with a 10nF capacitor. Also, ensure that the power supply voltage is within the specified operating range and that the device is not exposed to voltage spikes or transients.
  • The maximum operating temperature for the MAX7426EUA+ is 125°C. However, it is recommended to operate the device within the specified operating temperature range of -40°C to 85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX7426EUA+, start by checking the power supply voltage and ensuring that it is within the specified operating range. Then, check the input and output signals to ensure they are within the specified range. If the issue persists, refer to the datasheet and application notes for troubleshooting tips and guidelines.
  • Yes, the MAX7426EUA+ is designed to operate in high-noise environments. It has a high common-mode rejection ratio (CMRR) and a high power supply rejection ratio (PSRR), which helps to reject noise and interference are present. However, it is still recommended to take proper precautions to minimize noise and interference, such as using shielding, and proper PCB layout and design.
