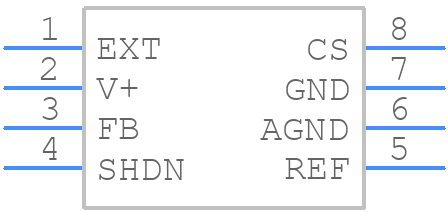

MAX770ESA+ - Analog Devices

MAX770ESA+ Details

• Manufacturer Part Number:

  MAX770ESA+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-SOIC_N-150_MIL

• Package Description:

  SO-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-SOIC_N-150_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1999-05-26

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE FREQUENCY MODULATION

• Input Voltage-Max:

  16.5 V

• Input Voltage-Min:

  2 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1 A

• Output Voltage-Max:

  5.2 V

• Output Voltage-Min:

  4.8 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Current-Max (Isup):

  0.11 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  300 kHz

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
