MAX77504AAFC+ - Analog Devices

Description: 14V Input, 3A High-Efficiency Buck Converter

Download MAX77504AAFC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

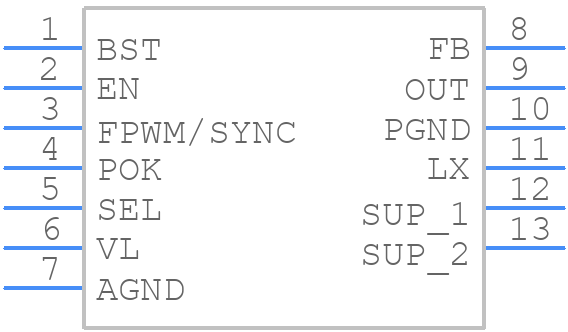

MAX77504AAFC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77504AAFC+ - Analog Devices PCB footprint - Other - Other - F122A2F+2
click to zoom
3D Models
MAX77504AAFC+ - Analog Devices - 3D model - Other - F122A2F+2
click to zoom

MAX77504AAFC+ Details

  • Manufacturer Part Number:

    MAX77504AAFC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-2.5X2.5X0.55

  • Package Description:

    FC2QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-2.5X2.5X0.55

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-12-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1575 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

MAX77504AAFC+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77504AAFC+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small ceramic capacitor (e.g. 10nF) between the VOUT pin and GND to improve stability.
  • The MAX77504AAFC+ can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
  • The MAX77504AAFC+ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, make sure to follow the recommended PCB layout and thermal management guidelines to prevent overheating.
  • To troubleshoot issues with the MAX77504AAFC+, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Also, check the PCB layout and component values to ensure they match the recommended values. If the issue persists, consult the datasheet and application notes for further guidance.
