MAX77533AEWC+T - Analog Devices

Description: 1.5A Single Channel Buck Regulator

Download MAX77533AEWC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

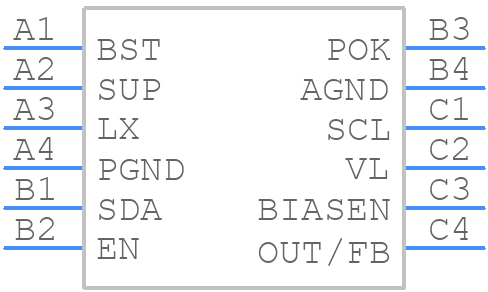

MAX77533AEWC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77533AEWC+T - Analog Devices PCB footprint - BGA - BGA - W121A1+3
click to zoom
3D Models
MAX77533AEWC+T - Analog Devices - 3D model - BGA - W121A1+3
click to zoom

MAX77533AEWC+T Details

  • Manufacturer Part Number:

    MAX77533AEWC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.848 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.398 mm

MAX77533AEWC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77533AEWC+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A 10uF to 22uF ceramic capacitor is recommended. The capacitor values and types may need to be adjusted based on the specific application requirements.
  • The MAX77533AEWC+T can operate in ambient temperatures up to 105°C. However, the device's performance and reliability may be affected at high temperatures, and the maximum operating temperature may be limited by the specific application requirements.
  • The MAX77533AEWC+T has a specific power-up and power-down sequence that must be followed to ensure proper operation. The device should be powered up by applying the input voltage to the VIN pin, followed by the enable signal to the EN pin. The device should be powered down by removing the enable signal, followed by the input voltage.
  • The MAX77533AEWC+T can deliver up to 3A of output current. However, the maximum output current may be limited by the input voltage, output voltage, and ambient temperature.
