MAX77533BEWC33+ - Analog Devices

Description: 14V Input, 1.5A High-Efficiency Buck Converter with 9μA IQ

Download MAX77533BEWC33+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

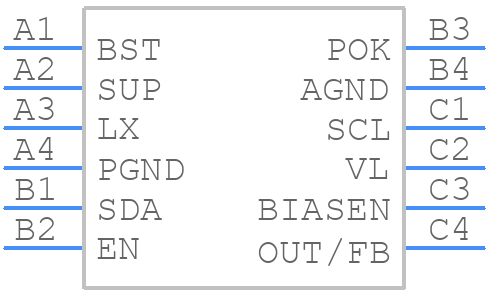

Symbol
MAX77533BEWC33+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77533BEWC33+ - Analog Devices PCB footprint - BGA - BGA - W121A1+3
click to zoom
3D Models
MAX77533BEWC33+ - Analog Devices - 3D model - BGA - W121A1+3
click to zoom

MAX77533BEWC33+ Details

  • Manufacturer Part Number:

    MAX77533BEWC33+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.848 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.398 mm

MAX77533BEWC33+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX77533BEWC33+ can be found in the MAX77533 Evaluation Kit documentation, which includes a detailed layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for optimal performance.
  • To optimize the performance of the MAX77533BEWC33+, engineers should consider factors such as input voltage, output voltage, and load current. Analog Devices provides a range of application notes and design tools, including the MAX77533 Evaluation Kit and the Power Management Design Center, to help engineers optimize their designs.
  • The MAX77533BEWC33+ has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. Engineers should also consider the thermal resistance of the package and the PCB, as well as the maximum junction temperature, to ensure reliable operation.
  • Yes, the MAX77533BEWC33+ is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a robust process that ensures high reliability and low defect rates.
  • Analog Devices provides a range of resources to help engineers troubleshoot issues with the MAX77533BEWC33+, including application notes, FAQs, and technical support. Engineers can also use the MAX77533 Evaluation Kit to test and validate their designs.
