MAX77533BEWC33+T - Analog Devices

Description: 1.5A Single Channel Buck Regulator

Download MAX77533BEWC33+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

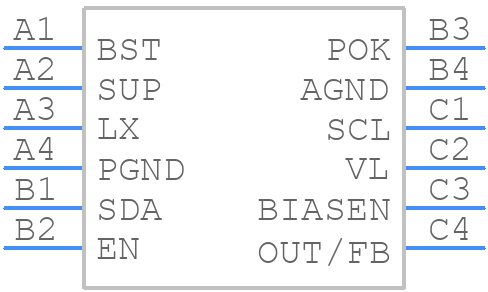

Symbol
MAX77533BEWC33+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77533BEWC33+T - Analog Devices PCB footprint - BGA - BGA - W121A1+3
click to zoom
3D Models
MAX77533BEWC33+T - Analog Devices - 3D model - BGA - W121A1+3
click to zoom

MAX77533BEWC33+T Details

  • Manufacturer Part Number:

    MAX77533BEWC33+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.848 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.398 mm

MAX77533BEWC33+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77533BEWC33+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
  • To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB under the device, and to use a heat sink or a thermal interface material (TIM) to dissipate heat. The device's junction temperature should be kept below 125°C to ensure reliable operation.
  • The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize power supply noise and ensure stable operation.
  • The output voltage of the MAX77533BEWC33+T can be configured by connecting a resistor divider network between the output and the FB pin. The resistor values can be calculated using the formula provided in the datasheet, and the output voltage can be adjusted from 0.8V to 3.3V.
  • The maximum input voltage that the MAX77533BEWC33+T can handle is 5.5V. Exceeding this voltage may damage the device or affect its performance.
