MAX77597ETBB+T - Analog Devices

Description: Switching Voltage Regulators 36V, 300mA, Buck Converter with 1.1A IQ

Download MAX77597ETBB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

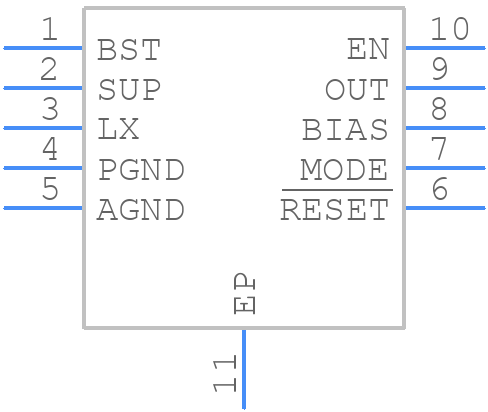

MAX77597ETBB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77597ETBB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10L, TDFN, 2.5X2.0X0.75 mm
click to zoom
3D Models
MAX77597ETBB+T - Analog Devices - 3D model - Small Outline No-lead - 10L, TDFN, 2.5X2.0X0.75 mm
click to zoom

MAX77597ETBB+T Details

  • Manufacturer Part Number:

    MAX77597ETBB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-2.5X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-2.5X2X0.75

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-10-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-XDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    3.4 V

  • Output Voltage-Min:

    3.1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1820 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX77597ETBB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77597ETBB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
  • To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB under the device, and to use a thermal interface material (TIM) to improve heat transfer between the device and the thermal pad. Additionally, the device should be placed in a location with good airflow, and the PCB should be designed to allow for good heat dissipation.
  • The recommended input capacitor value for the MAX77597ETBB+T is 10uF to 22uF, with a voltage rating of at least 6.3V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
  • The MAX77597ETBB+T can be configured for a specific output voltage by connecting a resistor divider network between the output voltage and the FB pin. The resistor values can be calculated using the formula provided in the datasheet, and the output voltage can be adjusted by changing the resistor values.
  • The maximum input voltage that the MAX77597ETBB+T can handle is 5.5V. Exceeding this voltage may damage the device or affect its performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77597ETBB+T Overview

Use the download button to access the MAX77597ETBB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
