MAX77654AENVN+T - Analog Devices

Description: Ultra-Low Power PMIC Featuring Single-Inductor, 3-Output Buck-Boost, 2-LDOs, Power-Path Charger for Small Li+, and Ship Mode .-0.3V to +6.0V,65°C to +150°C

Download MAX77654AENVN+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

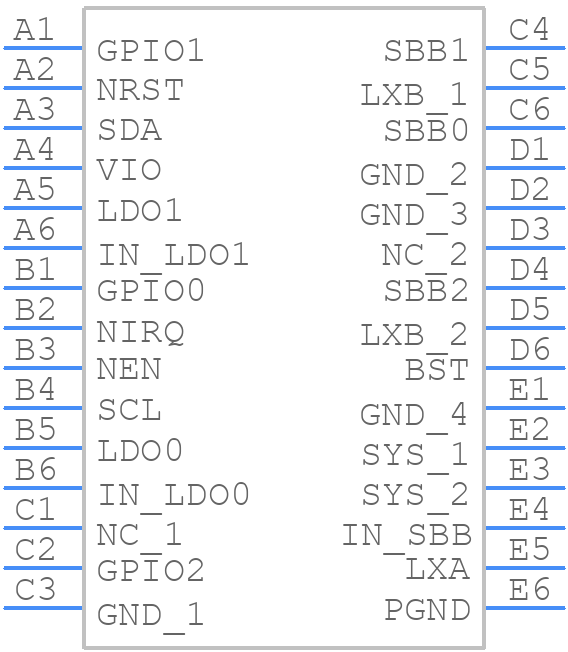

Symbol
MAX77654AENVN+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77654AENVN+T - Analog Devices PCB footprint - BGA - BGA - N302C2+1_2025-2
click to zoom
3D Models
MAX77654AENVN+T - Analog Devices - 3D model - BGA - N302C2+1_2025-2
click to zoom

MAX77654AENVN+T Details

  • Manufacturer Part Number:

    MAX77654AENVN+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    30-WLCSP-N/A

  • Package Description:

    WLP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    30-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-08-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PBGA-B30

  • Length:

    2.788 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA30,5X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.85V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.338 mm

MAX77654AENVN+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX77654AENVN+T. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it's a good idea to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX77654AENVN+T is a highly configurable device. To configure it for a specific battery chemistry, you'll need to set the appropriate charging voltage and current limits using the I2C interface. You can use the MAX77654A's evaluation kit and software development kit (SDK) to configure the device and optimize its performance for your specific battery chemistry.
  • The MAX77654AENVN+T is rated for operation from -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to follow the thermal design guidelines provided in the datasheet to ensure optimal performance and reliability.
  • No, the MAX77654AENVN+T is designed specifically for rechargeable batteries. It's not recommended to use it with non-rechargeable batteries, as it may not function correctly and could potentially cause damage to the device or the battery.
  • To troubleshoot issues with the MAX77654AENVN+T, start by checking the device's status registers using the I2C interface. This can help you identify any errors or faults. You can also use the device's built-in diagnostic features, such as the battery voltage and current monitoring, to help identify the root cause of the issue. Additionally, refer to the datasheet and application notes for troubleshooting guidelines and FAQs.
