MAX77675AEWE+T - Analog Devices

Description: 4x Buck/Buck-Boost/Boost Regulators, 1x Inductor 2.5V to 5.5V Input Voltage Range0.5V to 5.5V Output Voltage Range 700mA Total Output Current (3.7VIN, 1.8VOUT) SIMO Up to 90% Efficiency6.9μA Typical IQ with Two Outputs Enabled in Low-Power Mode I2C Interface and Dedicated Enable Pin Flexible Power Sequencer (FPS) 1.99mm x 1.99mm, 16-Bump, 0.5mm Pitch Wafer-Level Package (WLP)

Download MAX77675AEWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

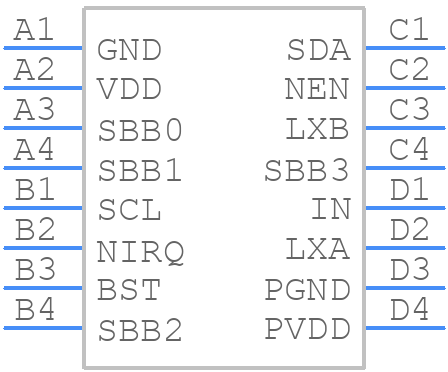

MAX77675AEWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77675AEWE+T - Analog Devices PCB footprint - BGA - BGA - MAX77675AEWE+Tsss
click to zoom
3D Models
MAX77675AEWE+T - Analog Devices - 3D model - BGA - MAX77675AEWE+Tsss
click to zoom

MAX77675AEWE+T Details

  • Manufacturer Part Number:

    MAX77675AEWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-03-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX77675AEWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77675AEWE+T involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX77675AEWE+T can be configured for different battery chemistries by adjusting the battery voltage regulation and charging current limits. For example, for a Li-ion battery, the charging voltage can be set to 4.2V and the charging current can be limited to 1C. The device also has a built-in battery gas gauge that can be calibrated for different battery chemistries.
  • The MAX77675AEWE+T has an operating ambient temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
  • Yes, the MAX77675AEWE+T has a built-in power path management feature that allows it to seamlessly switch between multiple power sources, such as a battery and a wall adapter. This feature ensures that the system remains powered even when one of the power sources is removed or fails.
  • The MAX77675AEWE+T has a built-in state machine that tracks the charging status and battery health. The device also has a set of status pins that can be used to monitor the charging status and battery health. Additionally, the device can be connected to a microcontroller or other host processor to provide more detailed information on the charging status and battery health.
