MAX77675CEWE+T - Analog Devices

Description: Low IQ SIMO PMIC with 0.5V to 5.5V Outputs Delivering Up to 700mA Total Output Current

Download MAX77675CEWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

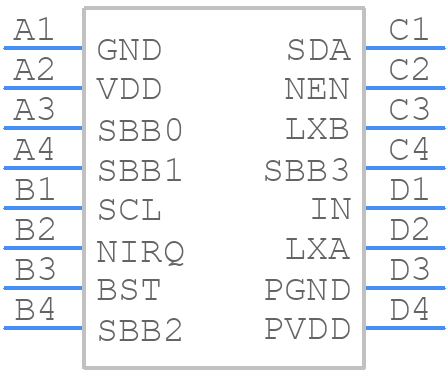

Symbol
MAX77675CEWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77675CEWE+T - Analog Devices PCB footprint - BGA - BGA - W161N1+1_2022-1
click to zoom
3D Models
MAX77675CEWE+T - Analog Devices - 3D model - BGA - W161N1+1_2022-1
click to zoom

MAX77675CEWE+T Details

  • Manufacturer Part Number:

    MAX77675CEWE+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.988 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.988 mm

MAX77675CEWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77675CEWE+T involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX77675CEWE+T output voltage can be configured using the FB pin and an external resistor divider network. The output voltage is determined by the ratio of the resistors and the internal reference voltage. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The MAX77675CEWE+T can handle an input voltage up to 5.5V, but it's recommended to operate it within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The watchdog timer on the MAX77675CEWE+T can be enabled or disabled using the WDI pin. A logic high on the WDI pin enables the watchdog timer, while a logic low disables it. The watchdog timer can also be configured using the I2C interface.
  • The EN pin on the MAX77675CEWE+T is an active-high enable input that allows the device to be turned on or off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and enters a low-power shutdown mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77675CEWE+T Overview

Use the download button to access the MAX77675CEWE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
