MAX77720SANP+T - Analog Devices

Description: Wide Output-Voltage Range, Dual-Polarity PMIC

Download MAX77720SANP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

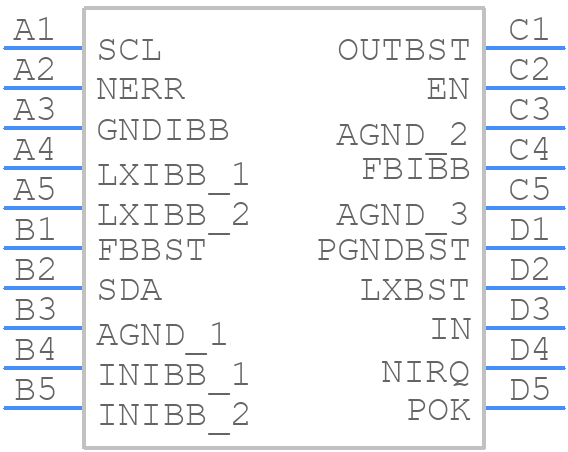

MAX77720SANP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77720SANP+T - Analog Devices PCB footprint - BGA - BGA - , N201D2+1
click to zoom
3D Models
MAX77720SANP+T - Analog Devices - 3D model - BGA - , N201D2+1
click to zoom

MAX77720SANP+T Details

  • Manufacturer Part Number:

    MAX77720SANP+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    2.11 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    2.4

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.768 mm

MAX77720SANP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77720SANP+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The selection of input and output capacitors for the MAX77720SANP+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX77720SANP+T is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • The MAX77720SANP+T has a specific power-up and power-down sequence that must be followed to ensure proper operation. The device should be powered up by applying the input voltage (VIN) before the enable signal (EN). During power-down, the enable signal should be turned off before the input voltage is removed. Additionally, the device should be powered up and down slowly to prevent voltage spikes and noise.
  • The recommended input voltage range for the MAX77720SANP+T is from 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability. It's recommended to use a voltage regulator or a power management IC to ensure a stable input voltage within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77720SANP+T Overview

Use the download button to access the MAX77720SANP+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
