MAX77786EWJ+ - Analog Devices

Description: Battery Management 21VIN, 3.5/5.5A 1-Cell Li+ Battery Charger with Smart Power Selector and OTG for USBC PD

Download MAX77786EWJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

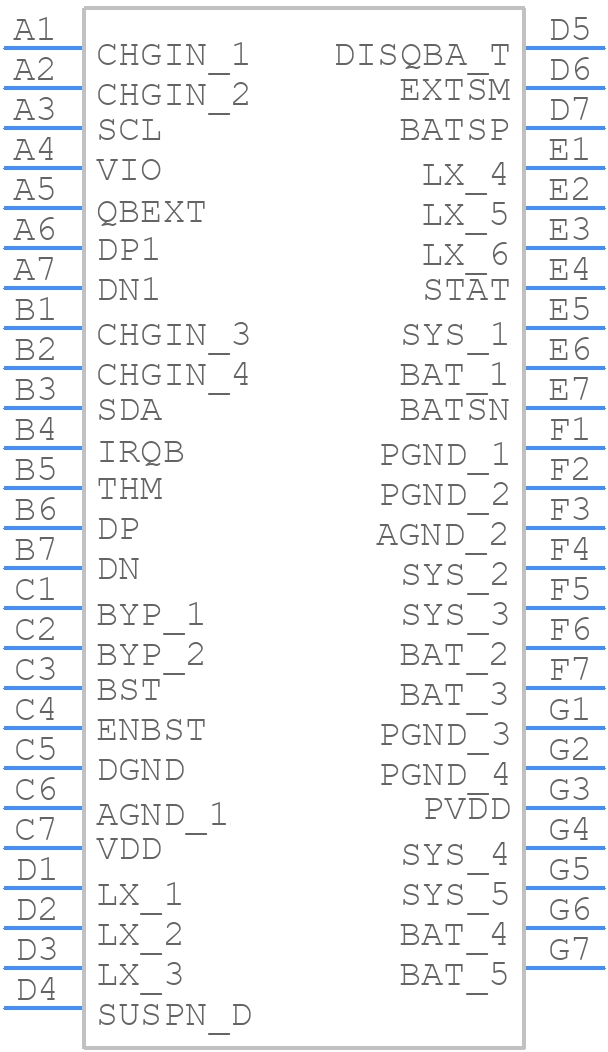

Symbol
MAX77786EWJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77786EWJ+ - Analog Devices PCB footprint - BGA - BGA - MAX77786EWJ+
click to zoom
3D Models
MAX77786EWJ+ - Analog Devices - 3D model - BGA - MAX77786EWJ+
click to zoom

MAX77786EWJ+ Details

  • Manufacturer Part Number:

    MAX77786EWJ+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
