MAX77787JEWX+T - Analog Devices

Description: 3.15A USB Type-C Autonomous Charger with JEITA for 1-Cell Li-ion/LiFePO4 Batteries

Download MAX77787JEWX+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

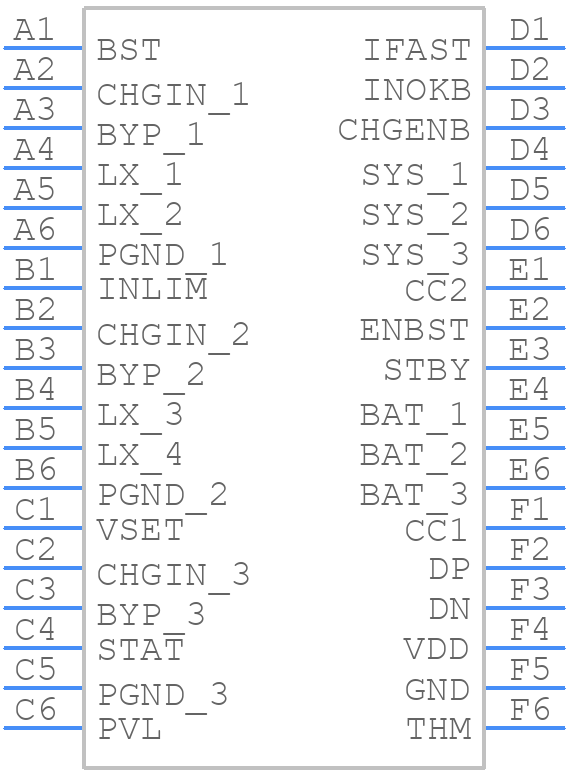

Symbol
MAX77787JEWX+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77787JEWX+T - Analog Devices PCB footprint - BGA - BGA - MAX77787JEWX+T
click to zoom
3D Models
MAX77787JEWX+T - Analog Devices - 3D model - BGA - MAX77787JEWX+T
click to zoom

MAX77787JEWX+T Details

  • Manufacturer Part Number:

    MAX77787JEWX+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-WLCSP-N/A

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-04-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX77787JEWX+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77787JEWX+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The selection of input and output capacitors for the MAX77787JEWX+T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor voltage rating should be at least 1.5 times the maximum input voltage. X5R or X7R ceramic capacitors are good options.
  • The MAX77787JEWX+T has an operating ambient temperature range of -40°C to +125°C. However, the device can be operated at a maximum junction temperature of 150°C. It's recommended to ensure that the device is operated within the specified temperature range to ensure reliability and performance.
  • To troubleshoot issues with the MAX77787JEWX+T, start by checking the input voltage and current, output voltage and current, and the device temperature. Verify that the input and output capacitors are properly selected and connected. Check for any signs of physical damage or overheating. Use an oscilloscope to measure the output voltage ripple and noise. Consult the datasheet and application notes for troubleshooting guidelines and tips.
  • Yes, the MAX77787JEWX+T is suitable for high-reliability and automotive applications. The device is AEC-Q100 qualified and meets the requirements for automotive applications. However, it's recommended to consult the datasheet and application notes for specific guidelines and recommendations for high-reliability and automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77787JEWX+T Overview

Use the download button to access the MAX77787JEWX+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
