MAX77958DEWV+T - Analog Devices

Description: Standalone USB Type-C and USB Power Delivery Controller

Download MAX77958DEWV+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

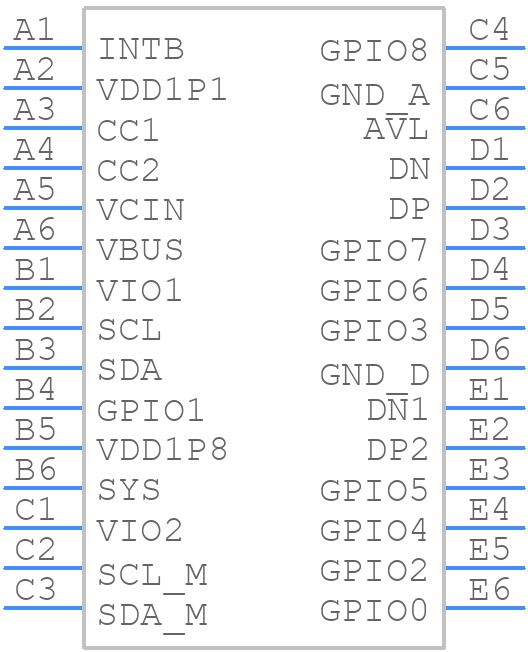

Symbol
MAX77958DEWV+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77958DEWV+T - Analog Devices PCB footprint - BGA - BGA - 30-WLCSP-N/A_2023-1-1
click to zoom
3D Models
MAX77958DEWV+T - Analog Devices - 3D model - BGA - 30-WLCSP-N/A_2023-1-1
click to zoom

MAX77958DEWV+T Details

  • Manufacturer Part Number:

    MAX77958DEWV+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    30-WLCSP-N/A

  • Package Description:

    WLP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    30-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-05-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B30

  • Length:

    3.068 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA30,5X6,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Supply Voltage-Nom (Vsup):

    4.2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.618 mm

MAX77958DEWV+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77958DEWV+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The selection of input and output capacitors for the MAX77958DEWV+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and the input voltage range. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX77958DEWV+T is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • The MAX77958DEWV+T output voltage can be configured using the FB pin and an external resistor divider network. The output voltage is determined by the ratio of the resistors in the divider network. For example, to set the output voltage to 3.3V, you can use a 10kΩ resistor from the FB pin to the output voltage and a 22kΩ resistor from the FB pin to ground.
  • The MAX77958DEWV+T can operate with an input voltage range of 2.7V to 5.5V. However, the device's performance and efficiency may be affected at input voltages close to the minimum or maximum rating. It's recommended to operate the device with an input voltage range of 3.0V to 5.0V for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77958DEWV+T Overview

Use the download button to access the MAX77958DEWV+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
