MAX77958EWV+T - Analog Devices

Description: Standalone USB Type-C and USB Power Delivery Controller

Download MAX77958EWV+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

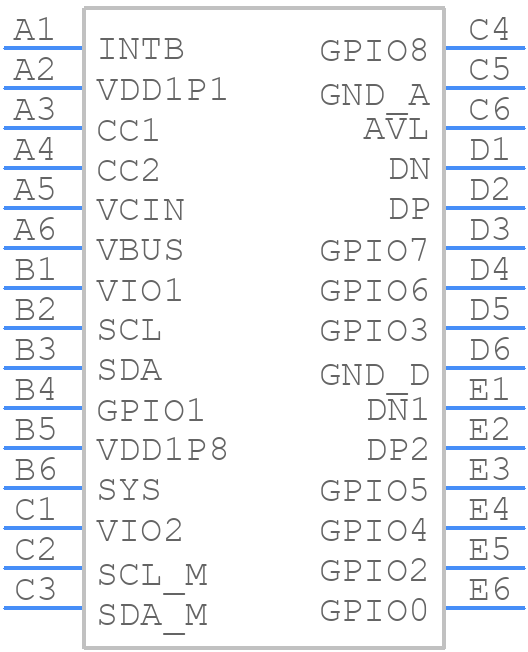

Symbol
MAX77958EWV+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77958EWV+T - Analog Devices PCB footprint - BGA - BGA - W302B3+1
click to zoom
3D Models
MAX77958EWV+T - Analog Devices - 3D model - BGA - W302B3+1
click to zoom

MAX77958EWV+T Details

  • Manufacturer Part Number:

    MAX77958EWV+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    30-WLCSP-N/A

  • Package Description:

    WLP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    30-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-05-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B30

  • Length:

    3.068 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA30,5X6,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Supply Voltage-Nom (Vsup):

    4.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.618 mm

MAX77958EWV+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77958EWV+T involves keeping the power traces short and wide, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors for the MAX77958EWV+T should be selected based on the input voltage range, output voltage, and the desired ripple voltage. A general rule of thumb is to use capacitors with a capacitance value of 10uF to 22uF, and a voltage rating of 1.5 to 2 times the input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
  • The MAX77958EWV+T can operate in an ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • To troubleshoot issues with the MAX77958EWV+T, start by checking the input voltage, output voltage, and current consumption using an oscilloscope or a multimeter. Check for any signs of overheating, such as excessive temperature rise or burning smells. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
  • Yes, the MAX77958EWV+T is designed to meet the requirements of high-reliability and safety-critical applications. It has a high MTBF (mean time between failures) rating and is manufactured using a robust and reliable process. However, it's essential to follow proper design and testing procedures to ensure that the device meets the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77958EWV+T Overview

Use the download button to access the MAX77958EWV+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
