MAX78002GXE+ - Analog Devices

Description: Artificial Intelligence Microcontroller with Low-Power Convolutional Neural Network Accelerator

Download MAX78002GXE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX78002GXE+ - Analog Devices - PCB symbol
click to zoom

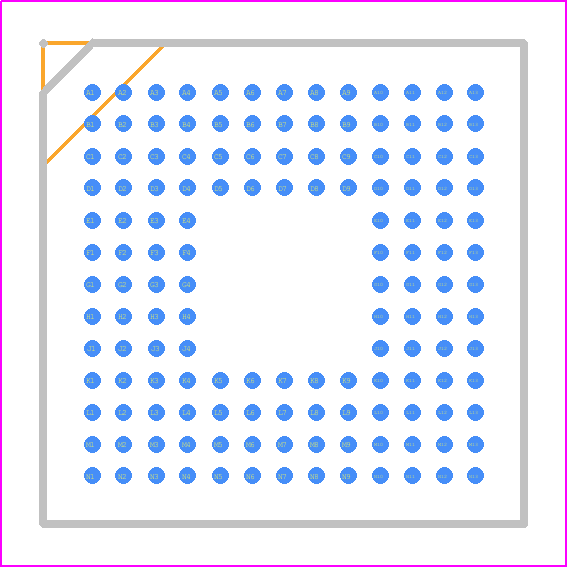

PCB Footprints
MAX78002GXE+ - Analog Devices PCB footprint - BGA - BGA - MAX78002GXE+-
click to zoom
3D Models
MAX78002GXE+ - Analog Devices - 3D model - BGA - MAX78002GXE+-
click to zoom

MAX78002GXE+ Details

  • Manufacturer Part Number:

    MAX78002GXE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    144-CSP_BGA-12X12X1.3

  • Package Description:

    CSBGA-144

  • Pin Count:

    144

  • Manufacturer Package Code:

    144-CSP_BGA-12X12X1.3

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2022-06-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA144,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max:

    1.21 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MAX78002GXE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX78002GXE+ is to follow the guidelines provided in the MAX78002GXE+ evaluation kit documentation, which includes a detailed layout guide and Gerber files. Additionally, it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing signal trace lengths and widths.
  • To optimize the performance of the MAX78002GXE+, it's essential to understand the specific requirements of your application. This includes selecting the correct output voltage, configuring the power modes, and optimizing the external component selection. Analog Devices provides a range of tools and resources, including the MAX78002GXE+ evaluation kit and simulation models, to help you optimize the performance of the device in your specific application.
  • The MAX78002GXE+ has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to keep the device within the recommended operating temperature range. This can be achieved by providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device. The thermal resistance of the package (θJA) is 30°C/W, and the thermal resistance of the junction-to-case (θJC) is 10°C/W.
  • To troubleshoot issues with the MAX78002GXE+, start by reviewing the datasheet and application notes to ensure that the device is being used within the recommended operating conditions. Check the power supply voltage, output voltage, and current consumption to ensure they are within the specified ranges. Use a oscilloscope to check for any unusual voltage or current waveforms. If the issue persists, contact Analog Devices' technical support team for further assistance.
  • The MAX78002GXE+ is designed to meet the electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements of most applications. However, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths and widths, and using shielding and filtering components as needed. Additionally, ensure that the device is operated within the recommended frequency range and that the output voltage is properly filtered to minimize EMI.
