MAX791ESE+ - Analog Devices

Description: MAX791ESE+, Voltage Supervisor 4.5 → 4.75 V Active Low, Push-Pull, reset 16-Pin SO

Download MAX791ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

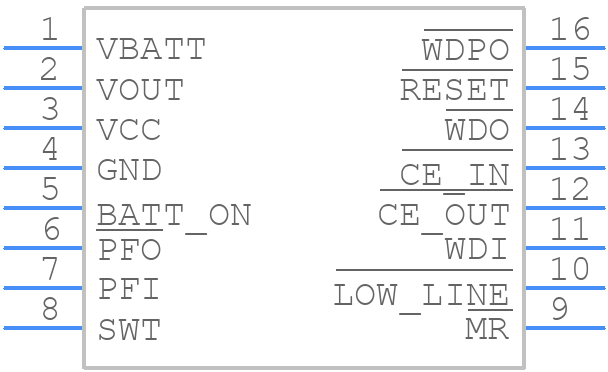

MAX791ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX791ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX791ESE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX791ESE+ Details

  • Manufacturer Part Number:

    MAX791ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, LEAD FREE, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX791ESE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX791ESE+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output filter.
  • To ensure the MAX791ESE+ is stable and doesn't oscillate, make sure to follow the recommended layout and placement guidelines, use a sufficient output capacitor with a low ESR, and ensure that the input voltage is within the recommended range. Additionally, it's recommended to add a small ceramic capacitor (e.g. 10nF) between the output and ground to improve stability.
  • The maximum input voltage that the MAX791ESE+ can handle is 28V, but it's recommended to operate the device within the recommended input voltage range of 4.5V to 24V for optimal performance and reliability.
  • The MAX791ESE+ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Additionally, it's recommended to use a heat sink or thermal pad to improve heat dissipation.
  • The output voltage of the MAX791ESE+ can be calculated using the formula: VOUT = (VIN x R1) / (R1 + R2), where VIN is the input voltage, R1 is the resistance of the feedback resistor, and R2 is the resistance of the divider resistor.
