MAX800LCSE+ - Analog Devices

Description: Maxim MAX800LCSE+, Voltage Supervisor, 0 → 5.5 V, WDT, 16-Pin SOIC

Download MAX800LCSE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

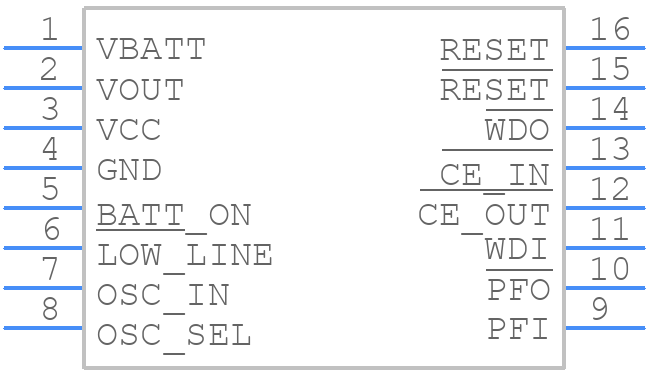

MAX800LCSE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX800LCSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX800LCSE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX800LCSE+ Details

  • Manufacturer Part Number:

    MAX800LCSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX800LCSE+ Frequently Asked Questions (FAQs)

  • The MAX800LCSE+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output pins separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and initialization, it is recommended to follow the power-up sequence outlined in the datasheet. This includes applying power to the device in the correct order (VCC, then VIN), ensuring that the input voltage is within the recommended range, and waiting for the device to complete its internal power-up sequence before applying a load.
  • The maximum current that the MAX800LCSE+ can deliver depends on the input voltage and the output voltage. According to the datasheet, the device can deliver up to 800mA of output current when the input voltage is within the recommended range. However, it is recommended to derate the output current based on the ambient temperature and the device's thermal characteristics.
  • To troubleshoot issues with the MAX800LCSE+, it is recommended to follow a systematic approach. Start by verifying that the device is properly powered up and initialized, then check the input and output voltages and currents to ensure they are within the recommended ranges. Use an oscilloscope to check for any unusual waveforms or noise on the input or output pins. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' technical support if necessary.
  • The MAX800LCSE+ is rated for operation up to 125°C, but it is recommended to derate the device's performance and ensure proper thermal management to prevent overheating. This includes using a heat sink, ensuring good airflow, and reducing the output current to prevent excessive heat generation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX800LCSE+ Overview

Use the download button to access the MAX800LCSE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX80, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
