MAX813LCPA+ - Analog Devices

Description: MAX813LCPA+, Processor Supervisor 4.65 V Active High, Push-Pull, reset 8-Pin PDIP N

Download MAX813LCPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

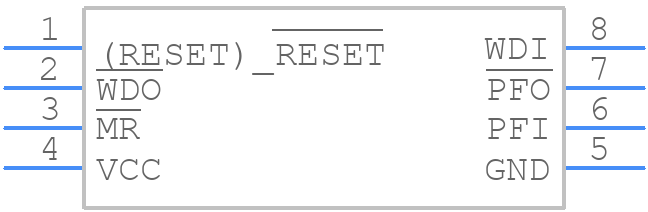

MAX813LCPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX813LCPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Plastic DIP
click to zoom
3D Models
MAX813LCPA+ - Analog Devices - 3D model - Dual-In-Line Packages - 8 Plastic DIP
click to zoom

MAX813LCPA+ Details

  • Manufacturer Part Number:

    MAX813LCPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.35 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX813LCPA+ Frequently Asked Questions (FAQs)

  • The MAX813LCPA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The MAX813LCPA+ has a specific power-up sequence requirement to avoid damage or incorrect operation. It is recommended to power up the device in the following sequence: VCC, then VIN, and finally EN. The power-down sequence should be reversed. Additionally, it is recommended to use a soft-start circuit to limit the inrush current during power-up.
  • The maximum allowed voltage on the VIN pin is 6V. To protect the device from overvoltage, it is recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode to limit the voltage to 6V. Additionally, a fuse or a current-limiting resistor can be used to prevent damage from overcurrent.
  • The MAX813LCPA+ is specified to operate within a temperature range of -40°C to +125°C. To ensure the device operates within this range, it is recommended to provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures during storage or operation.
  • The MAX813LCPA+ is a sensitive device and requires careful soldering to prevent damage. It is recommended to use a soldering iron with a temperature of 350°C or less, and to limit the soldering time to 3 seconds or less. Additionally, it is recommended to use a solder with a low melting point and to avoid applying excessive force or pressure during soldering.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX813LCPA+ Overview

Use the download button to access the MAX813LCPA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX81, or try a keyword search, such as Power Management Circuits
