MAX813LEPA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX813LEPA+ - MPU Supervisor, 1.2V-5.5V supply, Active-High reset, 200 ms delay/4.65V threshold, DIP-8

Download MAX813LEPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

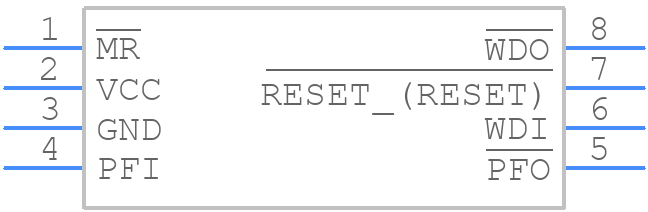

Symbol
MAX813LEPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX813LEPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P8+1-1
click to zoom
3D Models
MAX813LEPA+ - Analog Devices - 3D model - Dual-In-Line Packages - P8+1-1
click to zoom

MAX813LEPA+ Details

  • Manufacturer Part Number:

    MAX813LEPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX813LEPA+ Frequently Asked Questions (FAQs)

  • The MAX813LEPA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the power source.
  • The MAX813LEPA+ has a built-in power-on reset (POR) circuit that ensures the device is in a known state after power-up. The startup sequence should be handled by ensuring that the input voltage (VIN) is stable and within the recommended range before enabling the device. The POR circuit will then reset the device and ensure a clean startup.
  • The MAX813LEPA+ can tolerate a certain amount of input voltage ripple, but excessive ripple can affect the device's performance and reliability. The recommended input voltage ripple is typically in the range of 1-5% of the input voltage, but this can vary depending on the specific application and requirements.
  • To ensure EMC with the MAX813LEPA+, it is recommended to follow proper PCB design and layout practices, including using a solid ground plane, keeping noise-sensitive traces away from noise sources, and using shielding and filtering as necessary. Additionally, the device should be placed in a metal enclosure and connected to a low-impedance ground plane to minimize radiated emissions.
  • The recommended operating temperature range for the MAX813LEPA+ is -40°C to +125°C, but this can vary depending on the specific application and requirements. It is recommended to consult the datasheet and application notes for more information on temperature-related specifications and considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX813LEPA+ Overview

Use the download button to access the MAX813LEPA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX81, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
