MAX813LESA+ - Analog Devices

Description: MAX813LESA+, Voltage Supervisor 4.5 → 4.75 V Active High, Push-Pull, reset 8-Pin SOIC

Download MAX813LESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

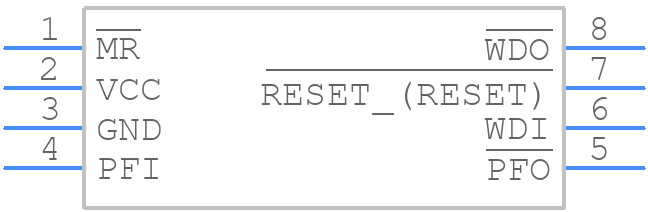

Symbol
MAX813LESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX813LESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)**-
click to zoom
3D Models
MAX813LESA+ - Analog Devices - 3D model - Small Outline Packages - (R-8)**-
click to zoom

MAX813LESA+ Details

  • Manufacturer Part Number:

    MAX813LESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    LEAD FREE, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX813LESA+ Frequently Asked Questions (FAQs)

  • The MAX813LESA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and EMI.
  • The MAX813LESA+ has a built-in POR circuit that ensures the device starts up in a known state. To handle the startup sequence, it is recommended to follow the power-up sequence guidelines provided in the datasheet, including powering up the device in a specific order (VCC, then VIN) and ensuring that the input voltage is stable before enabling the device.
  • The recommended input capacitor value and type for the MAX813LESA+ depend on the specific application and operating conditions. As a general guideline, a 1uF to 10uF ceramic capacitor with an X5R or X7R dielectric is recommended. The capacitor should be placed as close as possible to the VIN pin to minimize noise and EMI.
  • To ensure the MAX813LESA+ is operating within its recommended operating conditions, it is recommended to monitor the input voltage, output voltage, and operating temperature. The device should be operated within the recommended voltage range (2.7V to 5.5V) and temperature range (-40°C to +125°C). Additionally, the device should be protected from overvoltage, undervoltage, and overcurrent conditions.
  • The recommended output capacitor value and type for the MAX813LESA+ depend on the specific application and operating conditions. As a general guideline, a 1uF to 10uF ceramic capacitor with an X5R or X7R dielectric is recommended. The capacitor should be placed as close as possible to the VOUT pin to minimize noise and EMI.
