MAX814TCSA+ footprint, schematic symbol and 3D model by Analog Devices

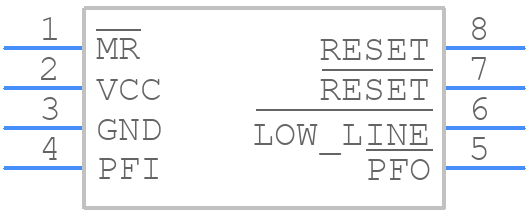

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX814TCSA+
Part Number MAX814TCSA+
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - -8 so
Released Date Jan 4, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX814TCSA+ Details

Manufacturer Part Number:
MAX814TCSA+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8-SOIC_N-150_MIL
Package Description:
0.150 INCH, SOP-8
Pin Count:
8
Manufacturer Package Code:
8-SOIC_N-150_MIL
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
1995-06-01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N
Adjustable Threshold:
NO
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
0.075 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+3.03V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

MAX814TCSA+ Frequently Asked Questions (FAQs)

The MAX814TCSA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing bypass capacitors close to the device.
The MAX814TCSA+ has a maximum junction temperature of 150°C. To handle thermal considerations, it is recommended to provide adequate heat sinking, use a thermal pad or heat sink, and ensure good airflow around the device. The thermal resistance of the package should also be taken into account when designing the system.
The recommended input voltage range for the MAX814TCSA+ is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
The MAX814TCSA+ requires proper biasing and configuration to ensure optimal performance. It is recommended to follow the application notes and design guidelines provided in the datasheet, and to consult with Analog Devices' technical support team if necessary.
Common failure modes of the MAX814TCSA+ include overvoltage, undervoltage, and overheating. To mitigate these failure modes, it is recommended to use voltage regulators, overvoltage protection circuits, and thermal monitoring and protection circuits in the system design.

Trust Checks

Community Provided

System Verified

Community Approved

MAX814TCSA+ Overview

Use the download button to access the MAX814TCSA+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX81, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
