MAX8521EWX+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX8521EWX+T - SMALLEST TEC POWER DRIVER, -40TO85DEG C

Download MAX8521EWX+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

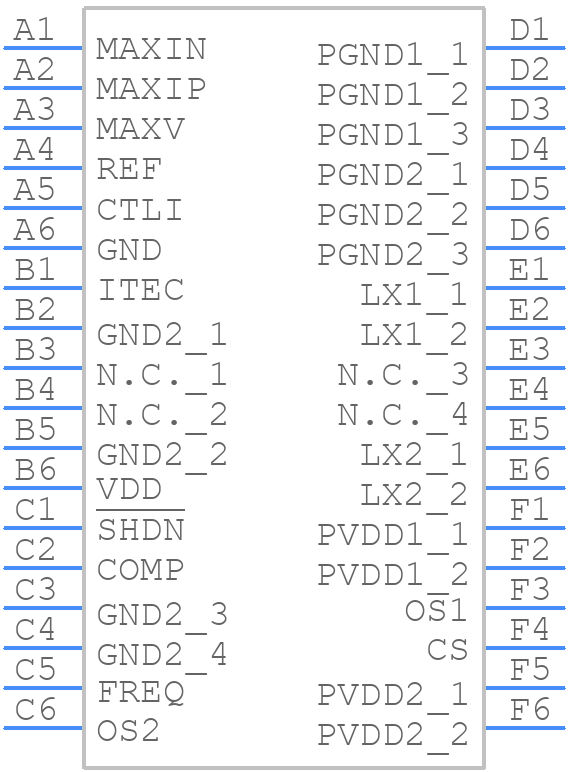

MAX8521EWX+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8521EWX+T - Analog Devices PCB footprint - BGA - BGA - W363A3+2
click to zoom
3D Models
MAX8521EWX+T - Analog Devices - 3D model - BGA - W363A3+2
click to zoom

MAX8521EWX+T Details

  • Manufacturer Part Number:

    MAX8521EWX+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-WLCSP-N/A

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, WLP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-11-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PBGA-B36

  • JESD-609 Code:

    e1

  • Length:

    3.06 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.06 mm

MAX8521EWX+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8521EWX+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any potential oscillations.
  • The MAX8521EWX+T has an absolute maximum input voltage rating of 6V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The MAX8521EWX+T is rated for operation up to 125°C. However, it's recommended to derate the device's performance and reliability at high temperatures. It's also important to ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
  • To troubleshoot issues with the MAX8521EWX+T, start by checking the input voltage and current, as well as the output voltage and current. Use an oscilloscope to check for any oscillations or noise on the output. Also, check the PCB layout and component values to ensure they match the recommended values in the datasheet. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8521EWX+T Overview

Use the download button to access the MAX8521EWX+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX85, or try a keyword search, such as Other Interface ICs
