MAX8535EUA+ - Analog Devices

Description: Gate Drivers ORing MOSFET Controller

Download MAX8535EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

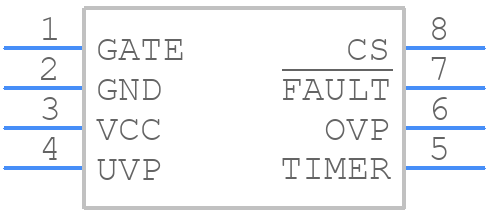

MAX8535EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8535EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036
click to zoom
3D Models
MAX8535EUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036
click to zoom

MAX8535EUA+ Details

  • Manufacturer Part Number:

    MAX8535EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO, MO-187C-AA, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-02-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX8535EUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8535EUA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the device.
  • To ensure stability, make sure to follow the recommended compensation network configuration, use a suitable output capacitor, and avoid over-compensating the device. Additionally, check that the input and output voltages are within the recommended operating range, and that the device is not subjected to excessive noise or ripple.
  • The maximum safe operating area (SOA) for the MAX8535EUA+ is not explicitly stated in the datasheet, but it's generally recommended to operate the device within the recommended operating conditions to ensure reliability and prevent damage. Exceeding the maximum ratings can lead to reduced lifespan or even device failure.
  • The MAX8535EUA+ is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics, such as thermal resistance and junction temperature, when designing for high-temperature applications. Ensure that the device is properly heatsinked and that the operating conditions are within the recommended specifications.
  • To troubleshoot issues with the MAX8535EUA+, start by verifying the input and output voltages, checking the compensation network, and ensuring that the device is properly decoupled. Use an oscilloscope to measure the output voltage and check for signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8535EUA+ Overview

Use the download button to access the MAX8535EUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX85, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
