- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX8556ETE+
- Part Number MAX8556ETE+
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16 TQFN25
- Released Date Feb 13, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX8556ETE+ Details
-
Manufacturer Part Number:
MAX8556ETE+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-LFCSP-5X5X0.75
-
Pin Count:
16
-
Manufacturer Package Code:
16-LFCSP-5X5X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2004-05-06
-
Manufacturer:
Analog Devices Inc
MAX8556ETE+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX8556ETE+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
-
The choice of input and output capacitors for the MAX8556ETE+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response.
-
The MAX8556ETE+ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to derate the device's power dissipation according to the ambient temperature to ensure reliable operation.
-
To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the input and output capacitors should be chosen to provide sufficient filtering and decoupling. The device's stability can be verified by checking the output voltage ripple and transient response in the application.
-
The typical startup time for the MAX8556ETE+ is around 1-2ms, but this can vary depending on the input voltage, output voltage, and load current. The startup time can be affected by the choice of input and output capacitors, as well as the device's internal soft-start circuitry.
Trust Checks
Community Provided
System Verified
Community Approved
MAX8556ETE+ Overview

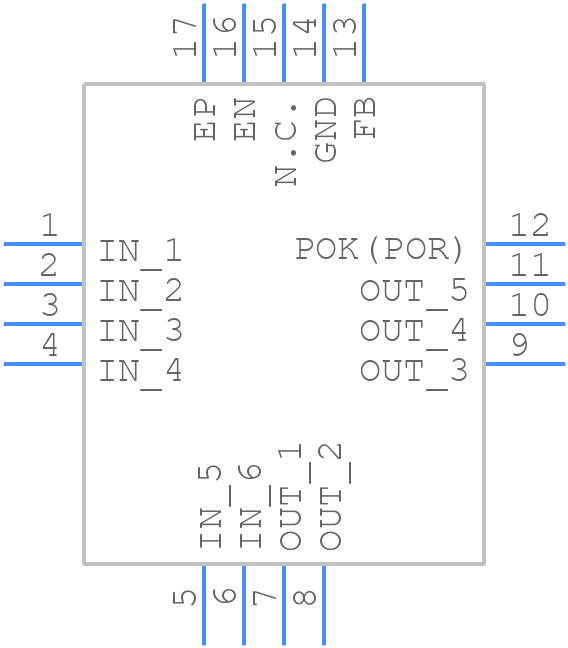

Use the download button to access the MAX8556ETE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX85,
or try a keyword search, such as Linear Regulator ICs
