MAX860ESA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX860ESA+T - DC/DC Charge Pump Adjustable Voltage Regulator, 1.5V to 5.5V in, -5.5V to -1.5V/100mA out, NSOIC-8

Download MAX860ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

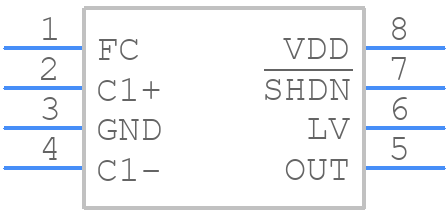

MAX860ESA+T - Analog Devices - PCB symbol
