MAX8647ETE+T - Analog Devices

Description: LED Lighting Drivers Ultra-Efficient Charge Pumps for Six White/RGB LEDs in 3mm x 3mm Thin QFN

Download MAX8647ETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

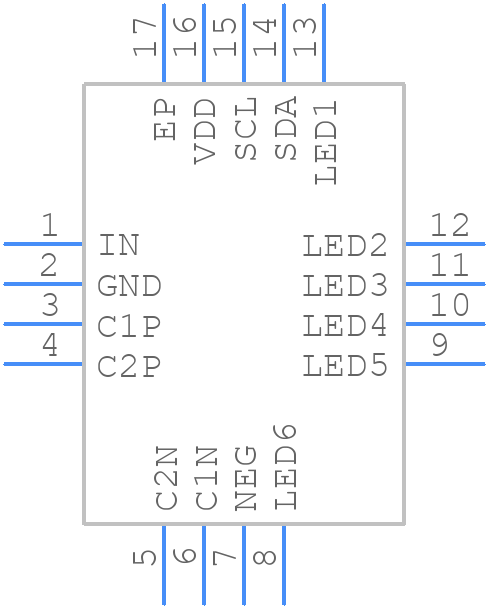

MAX8647ETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8647ETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+5=(Height=0.8)_1
click to zoom
3D Models
MAX8647ETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+5=(Height=0.8)_1
click to zoom

MAX8647ETE+T Details

  • Manufacturer Part Number:

    MAX8647ETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220WEED, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-05-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX8647ETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8647ETE+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog traces away from the digital traces.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor. If oscillations occur, try adding a small resistor in series with the output capacitor or increasing the output capacitor value.
  • The maximum input voltage that can be applied to the MAX8647ETE+T is 28V. Exceeding this voltage can cause damage to the device. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The MAX8647ETE+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and to ensure good thermal management, such as using a heat sink or a thermal pad, to prevent overheating.
  • To troubleshoot issues with the MAX8647ETE+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as a hot device or a burning smell. Use an oscilloscope to check for oscillations or noise on the output voltage. If the issue persists, try replacing the device or consulting the datasheet and application notes for further guidance.
