MAX8804YETA+ - Analog Devices

Description: High-Voltage, Dual-Input, USB/AC Adapter Chargers in 2mm x 3mm TDFN

Download MAX8804YETA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

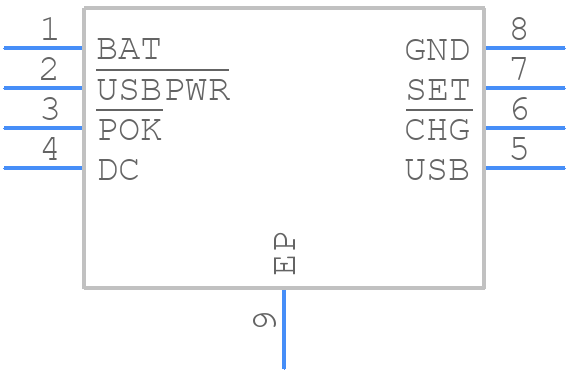

MAX8804YETA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8804YETA+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T823+1
click to zoom
3D Models
MAX8804YETA+ - Analog Devices - 3D model - Small Outline No-lead - T823+1
click to zoom

MAX8804YETA+ Details

  • Manufacturer Part Number:

    MAX8804YETA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8-LFCSP-2X3X0.75

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-05-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8804YETA+ Overview

Use the download button to access the MAX8804YETA+ schematic symbol, PCB footprint, and 3D model.
