MAX8808XETA+T - Analog Devices

Description: Linear Li+ Battery Chargers with Integrated Pass FET and Thermal Regulation in 2mm x 2mm TDFN

Download MAX8808XETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

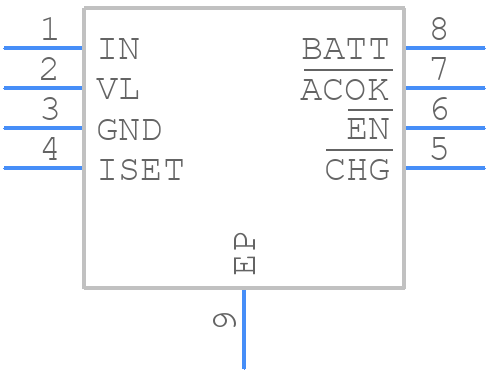

MAX8808XETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8808XETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+1
click to zoom
3D Models
MAX8808XETA+T - Analog Devices - 3D model - Small Outline No-lead - T822+1
click to zoom

MAX8808XETA+T Details

  • Manufacturer Part Number:

    MAX8808XETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    HVSON, SOLCC8,.08,20

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-05-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX8808XETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8808XETA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to prevent oscillation.
  • The maximum input voltage that the MAX8808XETA+T can handle is 6.5V. Exceeding this voltage can cause damage to the device. It's recommended to use input voltage protection circuitry, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The MAX8808XETA+T is rated for operation up to 125°C. However, it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating. Additionally, it's important to follow the recommended operating conditions and ensure that the device is not exposed to temperatures above 150°C during reflow soldering.
  • To troubleshoot issues with the MAX8808XETA+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
