MAX8863TEUK+T - Analog Devices

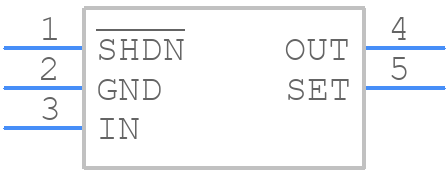

MAX8863TEUK+T Details

• Manufacturer Part Number:

  MAX8863TEUK+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  5-SOT_23-N/A

• Package Description:

  ROHS COMPLIANT, SOT-23, 5 PIN

• Pin Count:

  5

• Manufacturer Package Code:

  5-SOT_23-N/A

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2001-05-10

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Adjustability:

  FIXED/ADJUSTABLE

• Dropout Voltage1-Max:

  0.12 V

• Dropout Voltage1-Nom:

  0.055 V

• Input Voltage Absolute-Max:

  7 V

• JESD-30 Code:

  R-PDSO-G5

• JESD-609 Code:

  e3

• Length:

  2.9 mm

• Line Regulation-Max:

  0.0189%

• Load Regulation-Max(%):

  0.063%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.12 A

• Output Voltage1-Max:

  6.5 V

• Output Voltage1-Min:

  1.25 V

• Output Voltage1-Nom:

  3.15 V

• Output Voltage2-Max:

  5.5 V

• Output Voltage2-Min:

  1.25 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  TSOP5/6,.11,37

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.45 mm

• Surface Mount:

  YES

• Technology:

  PMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3.2%

• Width:

  1.625 mm
