MAX889TESA+ - Analog Devices

Description: Charge Pump INV -2.5V to -5.5V 200mA

Download MAX889TESA+ Model

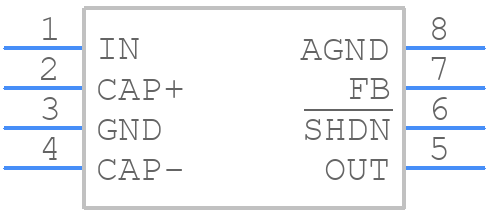

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX889TESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX889TESA+ - Analog Devices  - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX889TESA+ Details

  • Manufacturer Part Number:

    MAX889TESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-10-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    -5.5 V

  • Output Voltage-Min:

    -2.5 V

  • Output Voltage-Nom:

    -5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    620 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX889TESA+ Frequently Asked Questions (FAQs)

  • The MAX889TESA+ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the battery, use a solid ground plane, and keep the input and output traces short and wide. Additionally, it is recommended to place a 10uF capacitor between the VIN and GND pins to filter out noise.
  • The MAX889TESA+ has a adjustable output voltage range of 1.8V to 5.5V. To select the correct output voltage, consider the voltage requirements of your load, the input voltage range, and the desired efficiency. You can use the datasheet's output voltage selection table or consult with an Analog Devices application engineer for guidance.
  • The MAX889TESA+ has a maximum input voltage rating of 6.5V. However, it is recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • To ensure stability, it is recommended to follow the datasheet's guidelines for output capacitor selection, input capacitor selection, and PCB layout. Additionally, it is recommended to add a 10nF capacitor between the VOUT and GND pins to improve stability.
  • The typical startup time for the MAX889TESA+ is around 1ms. However, this can vary depending on the input voltage, output voltage, and load conditions. It is recommended to consult the datasheet's timing diagrams for more information.
