MAX8900AEWV+T - Analog Devices

Description: Battery Management 1.2A Switch-Mode Li+/Li-Poly Charger

Download MAX8900AEWV+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

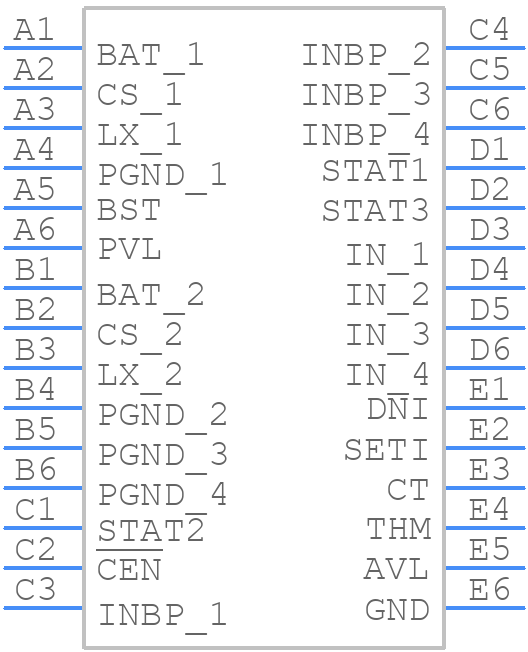

Symbol
MAX8900AEWV+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8900AEWV+T - Analog Devices PCB footprint - BGA - BGA - W302A2+1
click to zoom
3D Models
MAX8900AEWV+T - Analog Devices - 3D model - BGA - W302A2+1
click to zoom

MAX8900AEWV+T Details

  • Manufacturer Part Number:

    MAX8900AEWV+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    30-WLCSP-N/A

  • Package Description:

    2.44 X 2.67 MM, 0.64 MM HEIGHT, 0.40 MM PITCH, ROHS COMPLIANT, WLP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    30-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PBGA-B30

  • Length:

    2.67 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA30,5X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    6.3 V

  • Supply Voltage-Min (Vsup):

    3.4 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.375 mm

MAX8900AEWV+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8900AEWV+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces to prevent noise coupling.
  • The choice of input and output capacitors for the MAX8900AEWV+T depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. For the input capacitor, a value of 10uF to 22uF is typical, while for the output capacitor, a value of 22uF to 47uF is typical. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The MAX8900AEWV+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To ensure proper power-up and power-down of the MAX8900AEWV+T, it's recommended to follow a soft-start sequence, where the input voltage is ramped up slowly to prevent inrush currents. During power-down, the input voltage should be ramped down slowly to prevent voltage spikes. Additionally, the device's enable pin should be controlled to prevent unwanted startup or shutdown.
  • The typical efficiency of the MAX8900AEWV+T depends on the input voltage, output voltage, and load current. However, according to the datasheet, the device can achieve an efficiency of up to 95% at a 5V input, 3.3V output, and 1A load current.
