MAX8902AATA+T - Analog Devices

Description: Low-Noise, Low-Dropout, High-PSRR, 500mA Linear Regulators

Download MAX8902AATA+T Model

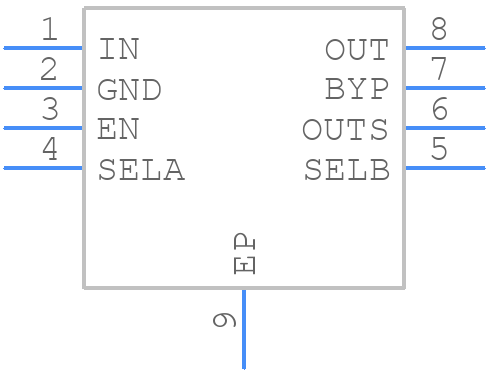

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX8902AATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+1
click to zoom
3D Models
MAX8902AATA+T - Analog Devices  - 3D model - Small Outline No-lead - T822+1
click to zoom

MAX8902AATA+T Details

  • Manufacturer Part Number:

    MAX8902AATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-11-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.12 V

  • Dropout Voltage1-Nom:

    0.15 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.0006%

  • Load Regulation-Max:

    0.0003%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    1.5225 V

  • Output Voltage1-Min:

    1.4775 V

  • Output Voltage1-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    2 mm

MAX8902AATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8902AATA+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces to prevent noise coupling.
  • The choice of input and output capacitors for the MAX8902AATA+T depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. For the input capacitor, a value of 10uF to 22uF is typical, while for the output capacitor, a value of 22uF to 47uF is typical. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The MAX8902AATA+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, the device can operate up to 85°C ambient temperature with a suitable heat sink and thermal design.
  • To ensure the MAX8902AATA+T is stable and doesn't oscillate, it's recommended to follow the layout guidelines in the datasheet, use a sufficient output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the device has a built-in stability compensation network, so no external compensation components are required.
  • Yes, the MAX8902AATA+T is suitable for high-reliability and automotive applications. It has a high MTBF (mean time between failures) rating and is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications.
