MAX9016AEKA+T - Analog Devices

Description: Maxim MAX9016AEKA+T Comparator, Open Drain O/P, 1.6μs 1.8 → 5.5 V 8-Pin SOT-23

Download MAX9016AEKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

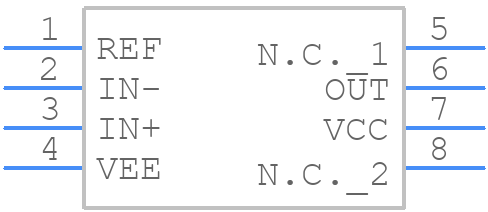

Symbol
MAX9016AEKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9016AEKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8 +5
click to zoom
3D Models
MAX9016AEKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8 +5
click to zoom

MAX9016AEKA+T Details

  • Manufacturer Part Number:

    MAX9016AEKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    MO-178, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bias Current-Max (IIB) @25C:

    0.001 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    31000 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.002 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX9016AEKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9016AEKA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and connect the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to VCC - 0.5V.
  • The MAX9016AEKA+T can handle input voltages up to 6V without damage, but it's recommended to keep the input voltage within the recommended range of 0.5V to VCC - 0.5V for optimal performance.
  • To troubleshoot issues with the MAX9016AEKA+T, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input voltage is within the recommended range and that the device is properly biased. Use an oscilloscope to check for oscillations or incorrect output voltages, and consult the datasheet for specific troubleshooting guidelines.
  • The MAX9016AEKA+T is rated for operation up to 125°C, but its performance may degrade at high temperatures. Consult the datasheet for specific temperature-related limitations and ensure that the device is properly heat-sinked if operating in a high-temperature environment.
