MAX9022AKA+T - Analog Devices

Description: Analog Comparators Micropower, Ultra-Small, Single/Dual/Quad Single-Supply Comparators

Download MAX9022AKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

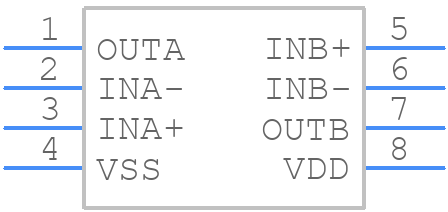

MAX9022AKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9022AKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX9022AKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX9022AKA+T Details

  • Manufacturer Part Number:

    MAX9022AKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.08 µA

  • Bias Current-Max (IIB) @25C:

    0.08 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    8000 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX9022AKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9022AKA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the input bypass and to keep the input and output traces as short as possible.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VLOGIC. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled with capacitors.
  • The MAX9022AKA+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX9022AKA+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly powered and that the input and output capacitors are properly sized and placed. Also, check for any signs of overheating or physical damage to the device.
  • Yes, the MAX9022AKA+T is suitable for use in high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.
