MAX9032AKA+T - Analog Devices

Description: Maxim MAX9032AKA+T Dual Comparator, Push-Pull O/P, 0.02μs +2.5 → +5.5 V 8-Pin SOT-23

Download MAX9032AKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

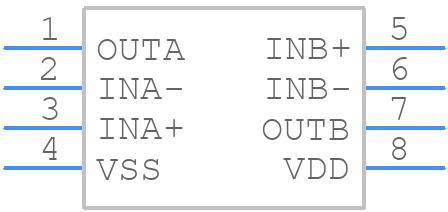

Symbol
MAX9032AKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9032AKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SOT-23-2
click to zoom
3D Models
MAX9032AKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - SOT-23-2
click to zoom

MAX9032AKA+T Details

  • Manufacturer Part Number:

    MAX9032AKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    ROHS COMPLIANT, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.08 µA

  • Bias Current-Max (IIB) @25C:

    0.08 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    188 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.11 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX9032AKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9032AKA+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The maximum input voltage that can be applied to the MAX9032AKA+T is 6V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the recommended range.
  • The MAX9032AKA+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the MAX9032AKA+T, start by checking the input voltage and current, and ensure that the device is operated within its recommended operating conditions. Check for any signs of overheating, and verify that the PCB layout and component values meet the recommended guidelines. Use an oscilloscope to check the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
