MAX9107EKA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9107EKA+T - Analogue Comparator, High Speed, 2 Comparators, 4.5V to 5.5V, SOT-23, 8 Pins

Download MAX9107EKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

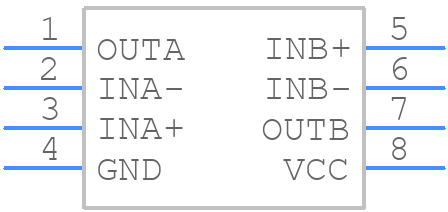

Symbol
MAX9107EKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9107EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8 +5
click to zoom
3D Models
MAX9107EKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8 +5
click to zoom

MAX9107EKA+T Details

  • Manufacturer Part Number:

    MAX9107EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.35 µA

  • Bias Current-Max (IIB) @25C:

    0.35 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    5 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX9107EKA+T Frequently Asked Questions (FAQs)

  • The MAX9107EKA+T requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise coupling.
  • The MAX9107EKA+T requires a specific power-up sequence to avoid damage or incorrect operation. It is recommended to power up the device in the following sequence: VCC, then VREF, and finally the input signal. Additionally, the power-up sequence should be slow and monotonic to avoid voltage spikes or glitches.
  • The MAX9107EKA+T has an operating temperature range of -40°C to +125°C. The device's performance may be affected by temperature, with increased temperature resulting in increased offset voltage and decreased bandwidth. It is recommended to operate the device within the specified temperature range to ensure optimal performance.
  • Common issues with the MAX9107EKA+T can be troubleshooted by checking the input and output signals, ensuring proper power-up sequence, and verifying the device's operating conditions. Additionally, checking the device's layout and placement, as well as the quality of the components used, can help identify and resolve issues.
  • The recommended bypass capacitors for the MAX9107EKA+T are 0.1μF to 1μF ceramic capacitors. These capacitors help to filter out noise and reduce the device's sensitivity to power supply noise. The value and type of bypass capacitor used can affect the device's performance, with larger capacitors providing better noise filtering but also increasing the device's startup time.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9107EKA+T Overview

Use the download button to access the MAX9107EKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX91, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
